SEET4(2.5)-W YBD152 (10 pieces)
Product Description
Part Number: SEET4(2.5)-W YBD152
ISO Type: SEET12T3-W YBD152
Edge Design: Wiper. Grade: YBD152
Grade Description: Medium thick TiCN + medium thick Al2O3 coating on carbide, a grade of Black Diamond Series for cast iron turning (Color: Black)
Workpiece Material (ISO): Cast Irons (K05-K25)

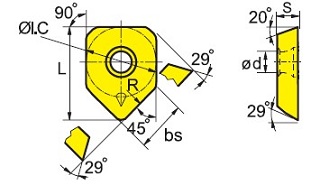

Dimension (inch): L=0.702, ΦI.C.=0.528, S=0.156, Φd=0.161, bs=0.372, R=19.685
Application: The insert with wiper design is suitable for finish to semi-finish face milling of cast irons.
Note: Product sold in packs of 10 units.
ISO Type: SEET12T3-W YBD152
Edge Design: Wiper. Grade: YBD152
Grade Description: Medium thick TiCN + medium thick Al2O3 coating on carbide, a grade of Black Diamond Series for cast iron turning (Color: Black)
Workpiece Material (ISO): Cast Irons (K05-K25)
Dimension (inch): L=0.702, ΦI.C.=0.528, S=0.156, Φd=0.161, bs=0.372, R=19.685
Application: The insert with wiper design is suitable for finish to semi-finish face milling of cast irons.
Note: Product sold in packs of 10 units.
