SEET4(2.5)-W YD201(10 pieces)
Product Description
Part Number: SEET4(2.5)-W YD201
ISO Type: SEET12T3-W YD201
Edge Design: Wiper. Grade: YD201
Grade Description: Uncoated carbide
Workpiece Material (ISO): Non-Ferrous Metals (N15-N30), Cast Irons (K15-K35)

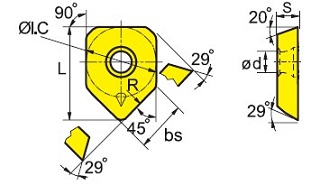

Dimension (inch): L=0.702, ΦI.C.=0.528, S=0.156, Φd=0.161, bs=0.372, R=19.685
Application: The uncoated insert has excellent combined wear resistance and toughness. With wiper edge design and low cutting forces the insert is suitable for finish and semi-finish face milling of non-ferrous metals and cast irons at medium to high cutting speeds.
Note: Product sold in packs of 10 units.
ISO Type: SEET12T3-W YD201
Edge Design: Wiper. Grade: YD201
Grade Description: Uncoated carbide
Workpiece Material (ISO): Non-Ferrous Metals (N15-N30), Cast Irons (K15-K35)
Dimension (inch): L=0.702, ΦI.C.=0.528, S=0.156, Φd=0.161, bs=0.372, R=19.685
Application: The uncoated insert has excellent combined wear resistance and toughness. With wiper edge design and low cutting forces the insert is suitable for finish and semi-finish face milling of non-ferrous metals and cast irons at medium to high cutting speeds.
Note: Product sold in packs of 10 units.
