STGCR08-2J (RH)

STGCR08-2J (RH)
Item# CM-4330001323
$28.78
Availability: Usually ships the same business day

Product Description

Part Number: STGCR08-2J

Type: Screw-Clamp for External Turning

Cutting Direction: Right Hand

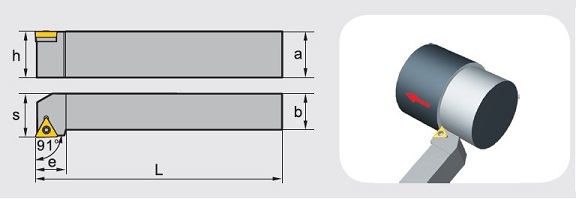

Dimension (inch): a=0.50, b=0.50, L=3.50, h=0.50, s=0.63, e=0.55

Application: Tool holder for general-purpose external turning with TC_ _2(1.5)_ positive inserts.

Associated Insert Types:

  • TCGX2(1.5)_ inserts for aluminum alloy and other non-ferrous metals

  • TCMT2(1.5)_ inserts for steel, stainless steels and others

  • TCGW2(1.5)_ PCBN tipped inserts for cast iron and hardened steel

  • TCGW2(1.5)_ PCD tipped inserts for non-ferrous metal alloys and non-metallic materials

    • Accessories:

  • Clamping Screw: I60M2.5×6.5

  • Wrench: WT07IP

    • Note: Tool holder is sold with a set of accessories, but not inserts.
