STGCR12-3C (RH)

STGCR12-3C (RH)
Item# CM-4330001322
$41.27
Availability: Usually ships the same business day

Product Description

Part Number: STGCR12-3C

Type: Screw-Clamp for External Turning

Cutting Direction: Right Hand

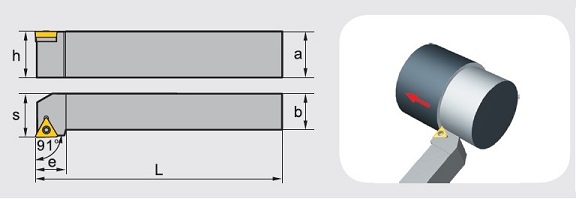

Dimension (inch): a=0.75, b=0.75, L=5.00, h=0.75, s=1.00, e=0.83

Application: Tool holder for general-purpose external turning with TC_ _3(2.5)_ positive inserts.

Associated Insert Types:

  • TCGX3(2.5)_ inserts for aluminum alloy and other non-ferrous metals
  • TCMT3(2.5)_ inserts for steel, stainless steels and others
  • TCGW3(2.5)_ PCBN tipped inserts for cast iron and hardened steel
  • TCGW3(2.5)_ PCD tipped inserts for non-ferrous metal alloys and non-metallic materials
  • Accessories:

  • Clamping Screw: I60M3.512
  • Shim: T16BS
  • Shim Screw: SM5x8.65XA
  • Wrench: WT15IP
  • Wrench: WH35L
  • Note: Tool holder is sold with a set of accessories, but not inserts.
