Product Description

Part Number: STGCR16-3D

Type: Screw-Clamp for External Turning

Cutting Direction: Right Hand

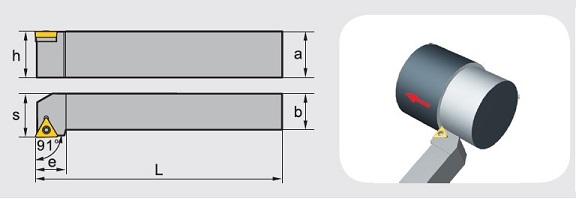

Dimension (inch): a=1.00, b=1.00, L=6.00, h=1.00, s=1.25, e=0.83

Application: Tool holder for general-purpose external turning with TC_ _3(2.5)_ positive inserts.

Associated Insert Types:

  • TCGX3(2.5)_ inserts for aluminum alloy and other non-ferrous metals
  • TCMT3(2.5)_ inserts for steel, stainless steels and others
  • TCGW3(2.5)_ PCBN tipped inserts for cast iron and hardened steel
  • TCGW3(2.5)_ PCD tipped inserts for non-ferrous metal alloys and non-metallic materials
  • Accessories:

  • Clamping Screw: I60M3.512
  • Shim: T16BS
  • Shim Screw: SM5x8.65XA
  • Wrench: WT15IP
  • Wrench: WH35L
  • Note: Tool holder is sold with a set of accessories, but not inserts.
