MCLN R/L, Right/Left Hand External Turning Tool Holders for CN_ _ Inserts

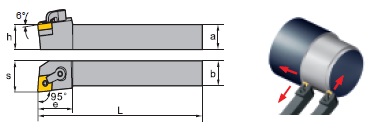

Multi-clamp type tool holders for CN_ _ inserts for external turning and facing
MCLNR Toolholders - Right Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| MCLNR12-4C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.25 |
CN__43_ |
| MCLNR16-4D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.25 |
CN__43_ |
| MCLNR16-5D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.50 |
CN__54_ |
| MCLNR20-5E |
1.25 |
1.25 |
7.00 |
1.25 |
1.57 |
1.50 |
CN__54_ |
| MCLNR20-6D |
1.25 |
1.25 |
6.00 |
1.25 |
1.57 |
1.77 |
CN__64_ |
MCLNL Toolholders - Left Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| a |
b |
L |
h |
s |
e |
| MCLNL12-4C |
0.75 |
0.75 |
5.00 |
0.75 |
1.00 |
1.25 |
CN__43_ |
| MCLNL16-4D |
1.00 |
1.00 |
6.00 |
1.00 |
1.25 |
1.25 |
CN__43_ |
| MCLNL20-6D |
1.25 |
1.25 |
6.00 |
1.25 |
1.57 |
1.77 |
CN__64_ |
 | $38.50 |
|  | $42.50 |
|  | $42.50 |
|
 | $49.50 |
|  | $49.50 |
|  | $38.50 |
|
 | $40.50 |
|  | $59.00 |
|
