ZSD03 (length to diameter ratio: 3)

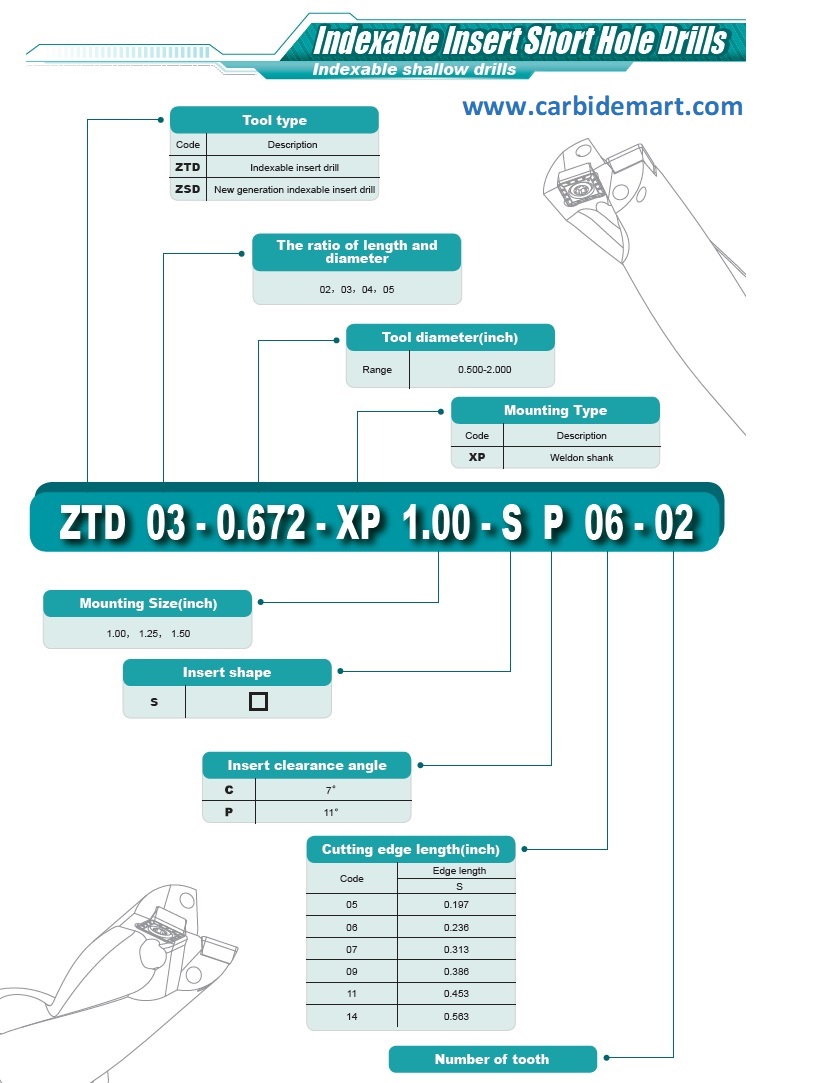

Indexable Drills (ANSI) Identification System

ZSD03-0.500"-XP0.75"-SP04-02 Drilling Diameter: 0.500" $275.00	ZSD03-0.531"-XP0.75"-SP04-02 Drilling Diameter: 0.531" $279.00
ZSD03-0.563"-XP0.75"-SP04-02 Drilling Diameter: 0.563" $287.00	ZSD03-0.594"-XP0.75"-SP05-02 Drilling Diameter: 0.594" $291.00
ZSD03-0.626"-XP0.75"-SP05-02 Drilling Diameter: 0.626" $298.00	ZSD03-0.657"-XP0.75"-SP05-02 Drilling Diameter: 0.657" $306.00
ZSD03-0.688"-XP0.75"-SP05-02 Drilling Diameter: 0.688" $310.00	ZSD03-0.719"-XP1.00"-SP06-02 Drilling Diameter: 0.719" $318.00
ZSD03-0.750"-XP1.00"-SP06-02 Drilling Diameter: 0.750" $325.00	ZSD03-0.781"-XP1.00"-SP06-02 Drilling Diameter: 0.781" $329.00
ZSD03-0.813"-XP1.00"-SP06-02 Drilling Diameter: 0.813" $337.00	ZSD03-0.843"-XP1.00"-SP06-02 Drilling Diameter: 0.843" $341.00
ZSD03-0.875"-XP1.00"-SP06-02 Drilling Diameter: 0.875" $348.00	ZSD03-0.906"-XP1.00"-SP07-02 Drilling Diameter: 0.906" $352.00
ZSD03-0.938"-XP1.00"-SP07-02 Drilling Diameter: 0.938" $360.00	ZSD03-0.969"-XP1.00"-SP07-02 Drilling Diameter: 0.969" $368.00
ZSD03-1.000"-XP1.00"-SP07-02 Drilling Diameter: 1.000" $372.00	ZSD03-1.031"-XP1.00"-SP07-02 Drilling Diameter: 1.031" $379.00
ZSD03-1.063"-XP1.00"-SP07-02 Drilling Diameter: 1.063" $383.00	ZSD03-1.094''-XP1.25''-SP09-02 Drilling Diameter: 1.094' $391.00
ZSD03-1.125"-XP1.25"-SP09-02 Drilling Diameter: 1.125" $398.00	ZSD03-1.156"-XP1.25"-SP09-02 Drilling Diameter: 1.156" $406.00
ZSD03-1.187"-XP1.25"-SP09-02 Drilling Diameter: 1.187" $411.00	ZSD03-1.219"-XP1.25"-SP09-02 Drilling Diameter: 1.219" $414.00
ZSD03-1.250''-XP1.25''-SP09-02 Drilling Diameter: 1.250' $422.00	ZSD03-1.281''-XP1.25''-SP09-02 Drilling Diameter: 1.281' $429.00
ZSD03-1.312''-XP1.25''-SP09-02 Drilling Diameter: 1.312' $433.00	ZSD03-1.343"-XP1.50"-SP11-02 Drilling Diameter: 1.343" $437.00
ZSD03-1.375"-XP1.50"-SP11-02 Drilling Diameter: 1.375" $445.00	ZSD03-1.406"-XP1.50"-SP11-02 Drilling Diameter: 1.406" $453.00
ZSD03-1.437"-XP1.50"-SP11-02 Drilling Diameter: 1.437" $460.00	ZSD03-1.468"-XP1.50"-SP11-02 Drilling Diameter: 1.468" $468.00
ZSD03-1.500"-XP1.50"-SP11-02 Drilling Diameter: 1.500" $468.00	ZSD03-1.531"-XP1.50"-SP11-02 Drilling Diameter: 1.531" $475.00
ZSD03-1.562"-XP1.50"-SP11-02 Drilling Diameter: 1.562" $483.00	ZSD03-1.594"-XP1.50"-SP11-02 Drilling Diameter: 1.594" $483.00
ZSD03-1.625"-XP1.50"-SP11-02 Drilling Diameter: 1.625" $491.00	ZSD03-1.687"-XP1.50"-SP14-02 Drilling Diameter: 1.687" $506.00
ZSD03-1.719"-XP1.50"-SP14-02 Drilling Diameter: 1.719" $514.00	ZSD03-1.750"-XP1.50"-SP14-02 Drilling Diameter: 1.750" $522.00
ZSD03-1.781"-XP1.50"-SP14-02 Drilling Diameter: 1.781" $529.00	ZSD03-1.813"-XP1.50"-SP14-02 Drilling Diameter: 1.813" $537.00
ZSD03-1.875"-XP1.50"-SP14-02 Drilling Diameter: 1.875" $545.00	ZSD03-1.937"-XP1.50"-SP14-02 Drilling Diameter: 1.937" $553.00
ZSD03-1.969"-XP1.50"-SP14-02 Drilling Diameter: 1.969" $560.00	ZSD03-2.000"-XP1.50"-SP14-02 Drilling Diameter: 2.000" $569.00
