SEET4(2.5) (ISO: SEET12T3)

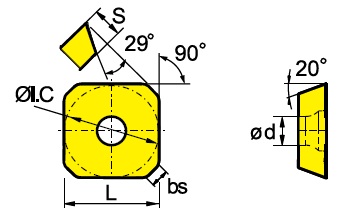

Dimension (inch): L=0.528, ΦI.C.=0.528, S=0.156, Φd=0.161, bs=0.100

Finishing

ANSI/ISO Chip Breaker Grade Coating ISO Classification
P M K S
SEET4(2.5)/SEET12T3 CF YBD152 CVD - - 05-25 -
SEET4(2.5)/SEET12T3 CF YBG102 PVD - - 05-20 -
SEET4(2.5)/SEET12T3 DF YBC301 CVD 15-35 - - -
SEET4(2.5)/SEET12T3 DF YBC302 CVD 15-35 10-30 - -
SEET4(2.5)/SEET12T3 DF YBM251 CVD 15-40 10-30 - -
SEET4(2.5)/SEET12T3 DF YBG202 PVD 10-30 10-30 - 05-20
SEET4(2.5)/SEET12T3 EF YBG202 PVD 10-30 10-30 - 05-20

Semi-Finishing

ANSI/ISO Chip Breaker Grade Coating ISO Classification
P M K S
SEET4(2.5)/SEET12T3 CM YBC252 CVD - 15-35 - -
SEET4(2.5)/SEET12T3 CM YBD152 CVD - - 05-25 -
SEET4(2.5)/SEET12T3 CM YBG102 PVD - - 05-20 -
SEET4(2.5)/SEET12T3 CM YBG205 PVD - 10-30 - -
SEET4(2.5)/SEET12T3 CM YBG202 PVD 10-30 10-30 - 5-25
SEET4(2.5)/SEET12T3 CM YBG302 PVD 25-40 25-40 - -
SEET4(2.5)/SEET12T3 DM YBC301 CVD 15-35 - - -
SEET4(2.5)/SEET12T3 DM YBC302 CVD 15-35 10-30 - -
SEET4(2.5)/SEET12T3 DM YBG202 PVD 10-30 10-30 - 05-20
SEET4(2.5)/SEET12T3 DM YBG302 PVD 25-40 25-40 - -
SEET4(2.5)/SEET12T3 DM YBM251 CVD 15-40 10-30 - -
SEET4(2.5)/SEET12T3 DM YBM253 CVD - 10-30 - -
SEET4(2.5)/SEET12T3 DM YBM351 CVD 25-40 20-35 - -
SEET4(2.5)/SEET12T3 DM YB9320 PVD 10-30 10-30 - -
SEET4(2.5)X/SEET12T3X DM YBG202 PVD 10-30 10-30 - 05-20
SEET4(2.5)/SEET12T3 EM YBG202 PVD 10-30 10-30 - 05-20
SEET4(2.5)/SEET12T3 EM YBG205 PVD - 10-30 - -
SEET4(2.5)/SEET12T3 EM YBG302 PVD 25-40 25-40 - -
SEET4(2.5)/SEET12T3 EM YBM251 CVD 15-40 10-30 - -
SEET4(2.5)/SEET12T3 EM YBM351 CVD 25-40 20-35 - -

Roughing

ANSI/ISO Chip Breaker Grade Coating ISO Classification
P M K S
SEET4(2.5)/SEET12T3 CR YBD152 CVD - - 05-25 -
SEET4(2.5)/SEET12T3 CR YBD252 CVD - - 15-35 -
SEET4(2.5)/SEET12T3 CR YBG202 PVD 10-30 10-30 - 05-20
SEET4(2.5)/SEET12T3 DR YBC301 CVD 15-35 - - -
SEET4(2.5)/SEET12T3 DR YBC302 CVD 15-35 10-30 - -
SEET4(2.5)/SEET12T3 DR YBG202 PVD 10-30 10-30 - 05-20
SEET4(2.5)/SEET12T3 DR YBG302 PVD 25-40 25-40 - -
SEET4(2.5)/SEET12T3 DR YBM351 CVD 25-40 20-35 - -

For Aluminum and Other Non-Ferrous Metals

ANSI/ISO Chip Breaker Grade Coating ISO Classification
P M K N S
SEET4(2.5)/SEET12T3 LH YD101 Uncoated - - - 05-25 -
SEET4(2.5)/SEET12T3 LH YD201 Uncoated - - 15-35 15-30 -
SEET4(2.5)/SEET12T3 LH YBG102 PVD - - 05-20 - -

SEET4(2.5)-CF YBD152 (10 pieces)
SEET4(2.5)-CF YBD152 (10 pieces)
For finish face milling of cast irons
$76.00
SEET4(2.5)-CF YBG102 (10 pieces)
SEET4(2.5)-CF YBG102 (10 pieces)
For finish face milling of cast irons
$76.00
SEET4(2.5)-DF YBC301 (10 pieces)
SEET4(2.5)-DF YBC301 (10 pieces)
For finish face milling of non-alloy and low-alloy steels in unstable conditions
$76.00
SEET4(2.5)-DF YBC302 ( 10 pieces)
SEET4(2.5)-DF YBC302 ( 10 pieces)
For finish face milling of steels and stainless steels
$76.00
SEET4(2.5)-DF YBM251 (10 Pieces)
SEET4(2.5)-DF YBM251 (10 Pieces)
For finish face milling of stainless steels
$76.00
SEET4(2.5)-DF YBG202 (10 pieces)
SEET4(2.5)-DF YBG202 (10 pieces)
For finish face milling of stainless steels and heat resistant alloys
$76.00
SEET4(2.5)-EF YBG202 (10 pieces)
SEET4(2.5)-EF YBG202 (10 pieces)
For finish face milling of stainless steels and heat resistant alloys
$76.00
SEET4(2.5)-CM YBC252 (10 pieces)
SEET4(2.5)-CM YBC252 (10 pieces)
For semi-finishing face milling of Steels.
$76.00
SEET4(2.5)-CM YBD152 (10 pieces)
SEET4(2.5)-CM YBD152 (10 pieces)
For semi-finish face milling of cast irons
$76.00
SEET4(2.5)-CM YBG102 (10 pieces)
SEET4(2.5)-CM YBG102 (10 pieces)
For semi-finishing face milling of cast irons
$76.00
SEET4(2.5)-CM YBG205 (10 pieces)
SEET4(2.5)-CM YBG205 (10 pieces)
For semi-finish face milling of stainless steels
$76.00
SEET4(2.5)-CM YBG202 (10 pieces)
SEET4(2.5)-CM YBG202 (10 pieces)
For semi-finish face milling of stainless steels and heat-resistant alloys
$76.00
SEET4(2.5)-CM YBG302 (10 pieces)
SEET4(2.5)-CM YBG302 (10 pieces)
For semi-finish face milling of carbon steels and stainless steels
$76.00
SEET4(2.5)-DM YBC301 (10 pieces)
SEET4(2.5)-DM YBC301 (10 pieces)
For semi-finish face milling of non-alloy and low-alloy steels in unstable conditions
$76.00
SEET4(2.5)-DM YBC302 (10 pieces)
SEET4(2.5)-DM YBC302 (10 pieces)
For semi-finish face milling of steels and stainless steels with hardness HRC<=45
$76.00
SEET4(2.5)-DM YBG202 (10 pieces)
SEET4(2.5)-DM YBG202 (10 pieces)
For semi-finish face milling of stainless steels and heat resistant alloys at high speeds
$76.00
SEET4(2.5)-DM YBG302 (10 pieces)
SEET4(2.5)-DM YBG302 (10 pieces)
For semi-finish face milling of stainless steels and steels
$76.00
SEET4(2.5)-DM YBM251 (10 pieces)
SEET4(2.5)-DM YBM251 (10 pieces)
For semi-finish face milling of stainless steels
$76.00
SEET4(2.5)-DM YBM253(10 pieces)
SEET4(2.5)-DM YBM253(10 pieces)
For face milling of stainless steels and steels (in stock)
$76.00
SEET4(2.5)-DM YBM351 (10 pieces)
SEET4(2.5)-DM YBM351 (10 pieces)
For semi-finish face milling of stainless steels and steels
$76.00
SEET4(2.5)X-DM YBG202 (10 pieces)
SEET4(2.5)X-DM YBG202 (10 pieces)
For semi-finish face milling of stainless steels and heat resistant alloys
$76.00
SEET4(2.5)-EM YBG202 (10 pieces)
SEET4(2.5)-EM YBG202 (10 pieces)
For semi-finish face milling of stainless steels and heat resistant alloys at high speeds
$76.00
SEET4(2.5)-DM YB9320 (10 pieces)
SEET4(2.5)-DM YB9320 (10 pieces)
For semi-finishing face milling of Steels and Stainless Steels
$76.00
SEET4(2.5)-EM YBG205 (10 pieces)
SEET4(2.5)-EM YBG205 (10 pieces)
For semi-finish to light rough face milling of stainless steels
$76.00
SEET4(2.5)-EM YBG302 (10 pieces)
SEET4(2.5)-EM YBG302 (10 pieces)
For semi-finish face milling of steels and stainless steels
$76.00
SEET4(2.5)-EM YBM251 (10 pieces)
SEET4(2.5)-EM YBM251 (10 pieces)
For semi-finish face milling of steels and stainless steels
$76.00
SEET4(2.5)-EM YBM351(10 pieces)
SEET4(2.5)-EM YBM351(10 pieces)
For semi-finish face milling of steels and stainless steels
$76.00
SEET4(2.5)-CR YBD152 (10 pieces)
SEET4(2.5)-CR YBD152 (10 pieces)
For rough face milling of cast irons
$76.00
SEET4(2.5)-CR YBD252 (10 pieces)
SEET4(2.5)-CR YBD252 (10 pieces)
For rough face milling of cast irons
$76.00
SEET4(2.5)-CR YBG202 (10 pieces)
SEET4(2.5)-CR YBG202 (10 pieces)
For rough face milling of stainless steels, steels and heat resistant alloys
$76.00
SEET4(2.5)-DR YBC301 (10 pieces)
SEET4(2.5)-DR YBC301 (10 pieces)
For rough face milling of non-alloy and low-alloy steels
$76.00
SEET4(2.5)-DR YBC302(10 pieces)
SEET4(2.5)-DR YBC302(10 pieces)
For rough face milling of steels and stainless steels
$76.00
SEET4(2.5)-DR YBG202 (10 pieces)
SEET4(2.5)-DR YBG202 (10 pieces)
For rough face milling of stainless steels, steels and heat resistant alloys
$76.00
SEET4(2.5)-DR YBG302 (10 pieces)
SEET4(2.5)-DR YBG302 (10 pieces)
For rough face milling of steels and stainless steels
$76.00
SEET4(2.5)-DR YBM351 (10 pieces)
SEET4(2.5)-DR YBM351 (10 pieces)
For rough face milling of steels and stainless steels
$76.00
SEET4(2.5)-LH YD101 (10 pieces)
SEET4(2.5)-LH YD101 (10 pieces)
For semi-finish face milling of aluminum alloys and non-ferrous metals
$76.00
SEET4(2.5)-LH YD201 (10 pieces)
SEET4(2.5)-LH YD201 (10 pieces)
For semi-finish to light rough face milling of aluminum alloys and cast irons
$76.00
SEET4(2.5)-LH YBG102(10 pieces)
SEET4(2.5)-LH YBG102(10 pieces)
For semi-finish face milling of aluminum alloys (Si=>12%) and cast irons
$93.80
