CNGA432S01020-2 YCB012

CNGA432S01020-2 YCB012
Item# CM-4210002675
Availability: Usually ships the same business day

Product Description

Part Number: CNGA432S01020-2 YCB012

ISO Type: CNGA120408T01020-2

Number of PCBN Tip: 2, Grade: YCB012

Grade Description: Fine carbide substrate brazed with low PCBN content tip

Workpiece Material (ISO Class): Hardened Steel (H05-H15)

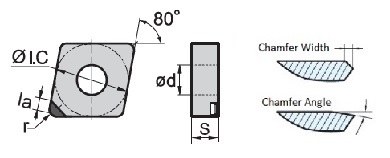

Dimension (inch): ΦI.C.=0.500, S=0.18, Φd=0.203, r=0.031, la=0.0945

Chamfer Width: 0.004, Chamfer Angle: 20˚

Application: This insert has double brazed PCBN tip with chamfering and honing. It offers superb wear and heat resistance, and is ideal for high speed continuous or minor interrupted turning of hardened steels with 45-65 HRC.

Associated Toolholders (items for CN43_ _ inserts)
  • DCLN R/L for external turning with double (D) clamps
  • MCLN R/L for external turning with multi (M) clamps
  • PCLN R/L for internal turning in steel boring bar
