CNGA433S01020-2 YCB012
Product Description
Part Number: CNGA433S01020-2 YCB012
ISO Type: CNGA120412T01020-2
Number of PCBN Tip: 2, Grade: YCB012
Grade Description: Fine carbide substrate brazed with low PCBN content tip
Workpiece Material (ISO Class): Hardened Steel (H05-H15)

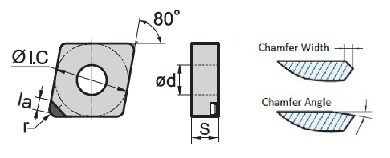

Dimension (inch): ΦI.C.=0.500, S=0.18, Φd=0.203, r=0.047, la=0.0906
Chamfer Width: 0.004”, Chamfer Angle: 20˚
Application: This insert has double brazed PCBN tip with chamfering and honing. It offers superb wear and heat resistance, and is ideal for high speed continuous or minor interrupted turning of hardened steels with 45-65 HRC.
Associated Toolholders (items for CN43_ _ inserts)DCLN R/L for external turning with double (D) clamps
MCLN R/L for external turning with multi (M) clamps
PCLN R/L for internal turning in steel boring bar
ISO Type: CNGA120412T01020-2
Number of PCBN Tip: 2, Grade: YCB012
Grade Description: Fine carbide substrate brazed with low PCBN content tip
Workpiece Material (ISO Class): Hardened Steel (H05-H15)
Dimension (inch): ΦI.C.=0.500, S=0.18, Φd=0.203, r=0.047, la=0.0906
Chamfer Width: 0.004”, Chamfer Angle: 20˚
Application: This insert has double brazed PCBN tip with chamfering and honing. It offers superb wear and heat resistance, and is ideal for high speed continuous or minor interrupted turning of hardened steels with 45-65 HRC.
Associated Toolholders (items for CN43_ _ inserts)
