QE Series External Parting/Grooving Blades

QE Series External Parting/Grooving Blades
Item# QEES26N-QEKS33N
$25.00
Item#:
Availability: Usually ships the same business day

Product Description

Fitted onto QZS Series parting blade holder, the QE Series external parting blades work with ZP_S Series single edge parting inserts to achieve maximum cut-off diameter.

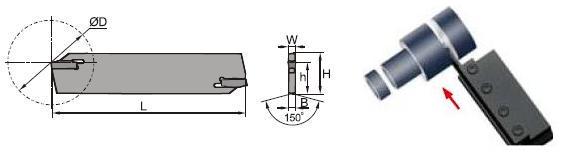

Part Number Dimension(in) Insert
L H h B W Dmax
  QEES26N 4.331 1.024 0.748 0.079 0.098 2.362   ZPES02502-MG
  QEFS26N 4.331 1.024 0.748 0.094 0.118 2.362   ZPFS0302-MG
  QEGS26N 4.331 1.024 0.748 0.126 0.157 2.756   ZPGS0402-MG
  QEKS26N 4.331 1.024 0.748 0.197 0.236 2.756   ZPKS0604-MG
  QEES32N 5.906 1.260 0.969 0.079 0.098 3.937   ZPES02502-MG
  QEFS32N 5.906 1.260 0.969 0.094 0.118 3.937   ZPFS0302-MG
  QEGS32N 5.906 1.260 0.969 0.126 0.157 4.724   ZPGS0402-MG
  QEHS32N 5.906 1.260 0.969 0.157 0.197 4.724   ZPHS0503-MG
  QEKS32N 5.906 1.260 0.969 0.197 0.236 4.724   ZPKS0604-MG


Note:

1. Product sold does not include insert

2. Product sold with screw wrench (Part#: W50RL)

3. Contact Customer Service for availability and leadtime of products of types and dimensions not listed above
