QZS Series Parting/Grooving Blade Holders
Product Description
With QE Series external parting blades, the QZS Series parting blade holders achieve the maximum cut-off diamemter.
Note:
1. Product sold does not include parting blade or insert
2. QZS*-26 sold with clamp (Part#: QZC26) and QZS*-32 with clamp (Part#: QZC32). All sold with screw (Part#: GB70-85-M6x30) and screw wrench (Part#: WH50L)
3. Contact Customer Service for availability and leadtime for blade holders not listed above.

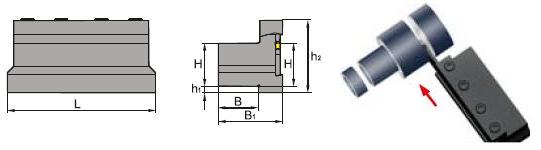

| Part Number | Dimention(in) | Associated Parting Blade | |||||
|---|---|---|---|---|---|---|---|
| L | H | h1 | h2 | B | B1 | ||
| QZS0750-26 | 3.386 | 0.750 | 0.394 | 1.835 | 0.748 | 1.496 | QE*S26N |
| QZS1000-26 | 3.386 | 1.000 | 0.197 | 1.835 | 0.906 | 1.654 | QE*S26N |
| QZS1250-26 | 3.386 | 1.250 | 0.118 | 2.031 | 1.181 | 1.890 | QE*S26N |
| QZS0750-32 | 4.331 | 0.750 | 0.512 | 1.969 | 0.748 | 1.496 | QE*S32N |
| QZS1000-32 | 4.331 | 1.000 | 0.315 | 1.969 | 0.906 | 1.654 | QE*S32N |
| QZS1250-32 | 4.331 | 1.250 | 0.197 | 2.126 | 1.181 | 1.890 | QE*S32N |
Note:
1. Product sold does not include parting blade or insert
2. QZS*-26 sold with clamp (Part#: QZC26) and QZS*-32 with clamp (Part#: QZC32). All sold with screw (Part#: GB70-85-M6x30) and screw wrench (Part#: WH50L)
3. Contact Customer Service for availability and leadtime for blade holders not listed above.
