Part Number: FMR05-4.00”-B1.50”-RP5-06

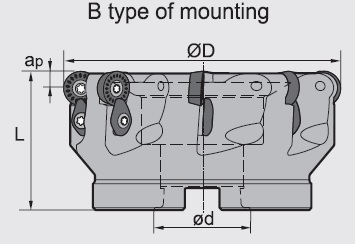

Dimension (inch): ΦD=4.00, Φd=1.50, L=2.50, ap(max)=0.315
Mounting Type: B type mounting
Number of Teeth (Z) = 6
Associated Inserts: RPMW50500(RPMW160500)
Associated Accessories: Insert Screw : I60m5x13,
Wedge Screw: I60M5*13
Note: Milling cutter sold without inserts. Insert screws and torque wrench included.
