FMP02-4.00"-B1.25"-SE12-10
Product Description
Part Number: FMP02-4.00"-B1.25"-SE12-10
Mounting Type: Type B
Number of Teeth (Z) = 10
Kr=90°
Cooling Type: External
Cutting Direction: Right Hand
![](https://sep.turbifycdn.com/ty/cdn/yhst-29631736472375/FMP02_B_DIM.jpg?t=1735189107&)

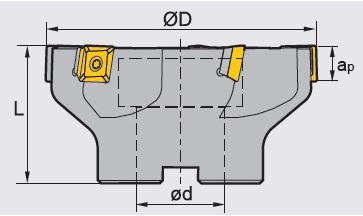

Dimension (inch): D=4.00, d=1.250, L=2.000, ap(max)=0.425
![](https://sep.turbifycdn.com/ty/cdn/yhst-29631736472375/FMP12APP.jpg?t=1735189107&)
Associated Inserts:
SEET120308
Associated Accessories: Insert Shim: S12BSX
Insert Screw:I60M3.5x12.
Shim Screw: SM5x7xA.
Wrench: WT15IS, WH35L
Note: Milling cutter sold without inserts. Insert screws and torque wrench included.
|
