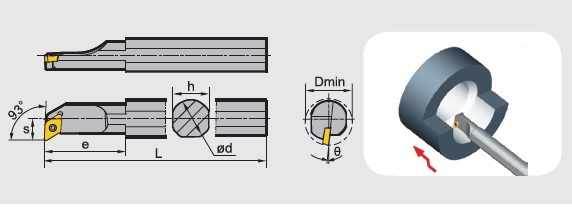

Right/left hand, 93° entering angle, screw-lock type boring bars for internal turning with positive DC_ _ inserts
SDUCR Toolholders - Right Hand Cutting Direction
| Part Number |
Dimension(inch) |
Applicable Inserts |
| D |
d |
h |
L |
s |
Ɵ |
e |
| S06M-SDUCR-2 |
0.512 |
0.375 |
0.354 |
6 |
0.276 |
-8° |
0 |
DC_ _2(1.5)__ |
| S08M-SDUCR-2 |
0.630 |
0.500 |
0.433 |
6 |
0.354 |
-8° |
0.866 |
DC_ _2(1.5)__ |
| S10M-SDUCR-2 |
0.787 |
0.625 |
0.591 |
6 |
0.433 |
-6° |
1.063 |
DC_ _2(1.5)__ |
| S10R-SDUCR-2 |
0.787 |
0.625 |
0.591 |
8 |
0.433 |
-6° |
1.063 |
DC_ _2(1.5)__ |
| S12Q-SDUCR-3 |
0.984 |
0.750 |
0.709 |
7 |
0.512 |
-6° |
1.575 |
DC_ _3(2.5)__ |
| S12S-SDUCR-3 |
0.984 |
0.750 |
0.709 |
10 |
0.512 |
-6° |
1.575 |
DC_ _3(2.5)__ |
| S16Q-SDUCR-3 |
1.260 |
1.000 |
0.906 |
12 |
0.669 |
-6° |
1.811 |
DC_ _3(2.5)__ |
| S16T-SDUCR-3 |
1.260 |
1.000 |
0.906 |
12 |
0.669 |
-6° |
1.811 |
DC_ _3(2.5)__ |
| A06H-SDUCR-2 |
0.512 |
0.375 |
0.374 |
4 |
0.276 |
-8° |
0 |
DC_ _2(1.5)__ |
| A12Q-SDUCR-3 |
0.984 |
0.750 |
0.748 |
7 |
0.512 |
-6° |
1.575 |
DC_ _3(2.5)__ |
SDUCL Toolholders - Left Hand Cutting Direction.
| Part Number |
Dimension(inch) |
Applicable Inserts |
| D |
d |
h |
L |
s |
Ɵ |
e |
| S06M-SDUCL-2 |
0.512 |
0.375 |
0.354 |
6 |
0.276 |
-8° |
0 |
DC_ _2(1.5)__ |
| S08M-SDUCL-2 |
0.630 |
0.500 |
0.433 |
6 |
0.354 |
-8° |
0.866 |
DC_ _2(1.5)__ |
| S10R-SDUCL-2 |
0.787 |
0.625 |
0.591 |
8 |
0.433 |
-6° |
1.063 |
DC_ _2(1.5)__ |
| S12S-SDUCL-3 |
0.984 |
0.750 |
0.709 |
10 |
0.512 |
-6° |
1.575 |
DC_ _3(2.5)__ |
| S16T-SDUCL-3 |
1.260 |
1.000 |
0.906 |
12 |
0.669 |
-6° |
1.811 |
DC_ _3(2.5)__ |
| A16R-SDUCL-3 |
1.260 |
1.000 |
0.945 |
8 |
0.669 |
-6° |
1.772 |
DC_ _3(2.5)__ |
|
